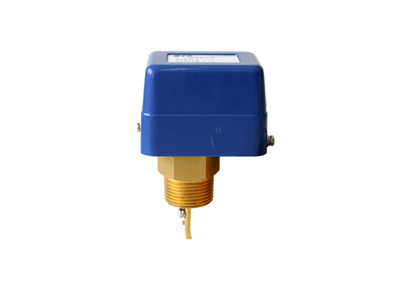

F1 Flow Switch Used as a fluid flow control or cut-off protection in the pipeline. When the fluid flow reaches the set value, the switch automatically cuts (or turns on) the circuit.
contact us- F-1 is used for flow control or cut-off protection. When the flow reaches
- the setting volume, the switch turns on/off automatically.
- The setting point is adjustable.
- Suitable mediums are water, oil, glycol and other non-hazard liquid.
- Standard 1” NPT or other special connecting.
- Maximum working pressure: 10bar

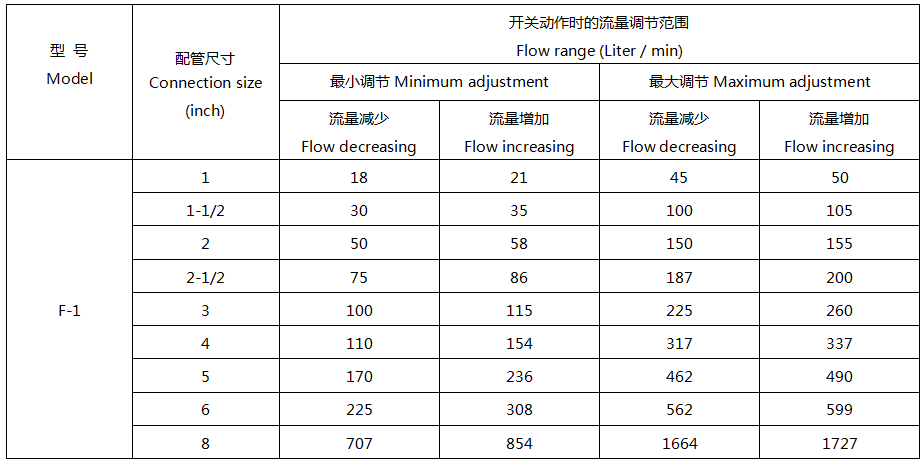

- Five paddles to fit with pipes of different diameters.
- Medium temperature: 0 ~ +120ºC
